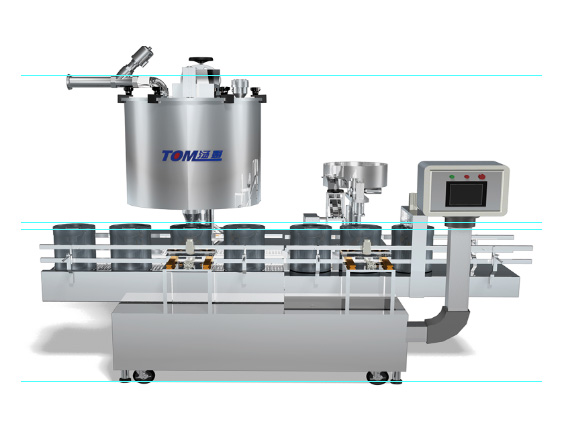

Suitable for 10-25kg Eccentric circle barrels,
automatic Proofreading barrel mouth, double-head weighing filling, automatic feeding cap, automatic capping.
suitable materials:
painting, paint, ink, adhesive, curing agent, organic solvent, chemical, detergent, pesticide, medicine, lubricating oil, edible oil and so on.
Main function:
PLC control, put drum by manual, double-headed automatic filling, automatic cap feeding, automatic roll-on cap.
10 sets of data can be saved.
Net weight / gross weight two filling methods
Automatic / manual two modes of operation
Fast filling / slow filling two speed control.
Automatic controlled diaphragm pump feed
No barrel no filling protection
Common type / explosion-proof type
The main technical parameters:
1. Dimensions: 2500mm (L)×1700mm (W)×2300mm (H)
2. the number of filling head: 1
3. suitable barrel: φ80mm-350mm Height: 250mm-500mm
4. packing range: 1-25kg
5. production capacity: ≦ 300 barrels / hour (with water as the medium)
6. filling error: ≦ ± 0.1%
7. power supply: 220V; 50Hz
8. the host power: 2KW
9. pneumatic air source: 0.55Mpa-0.65Mpa clean and stable gas source
Specifically for the agrochemical enterprises to provide the most provincial, most stable, most advanced packaging smart line, and strive to make Tom's products achieve practical, beautiful, humane, stable, thick and solid, humanization, to make due contributions for China and the world's.
