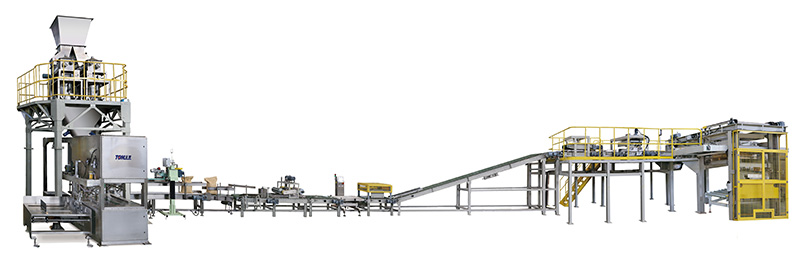

Fully automatic large bag weighing packaging palletizing production line Features:

The large bag material automatic packaging machine can display parameters, display the running status through the touch screen display, and has real-time online check function, which is convenient for different users.

1. Bag feeding machine: empty bag is provided for the bagging machine. After the operator places the empty bag on the bag feeder, the rest of the actions are automatically completed by the device. This part adopts the double disk automatic switching mode, each The tray can store more than 200 empty bags (woven bags or paper bags), and the bag is equipped with a vacuum detection system. The placement of the empty bags is detected by the detecting device.

2, bagging machine: automatic bagging machine can automatically take bags, open bags, automatic detection, automatic bagging and so on. The material placed in the electronic quantitative scale is loaded into the bag through the hopper and transferred to the vertical bag conveyor. This part can realize the functions of the gripper gripper bag, the vacuum sucker opening bag, the positive and negative pressure detection and the automatic discarding bag.

3, the folder shaping machine: complete the closing of the full bag, to ensure that the bag mouth smoothly into the folding machine.

4. Slot Folding Unit: The bag mouth of the bag can be automatically folded and seamed (suitable for textile bags).

5. Slot heat sealing unit: The bag mouth of the bag can be automatically slit and heat sealed (applicable to paper bags).

6. Vertical bag conveyor: The bag can be transported to the next station in a standing form.

Product Scope: During the production of powder, granules and flakes

Fully automatic bag feeding, bag taking, bag opening, metering, filling, unloading,

Grip shaping, splitting and sewing, etc.! Fully automatic packaging palletizing production line technical parameters:

1 weighing range: 20 ~ 50 kg / bag

2 weighing accuracy: ≤ ± 0.2%

3 packaging capacity: 500 ~ 1000 bags of hours

4 pre-made bags: coated woven bags, double-layer stitched woven bags, kraft paper bags

5 Bandwidth range: 400mm-650mm bag length range: 750mm-1060mm
