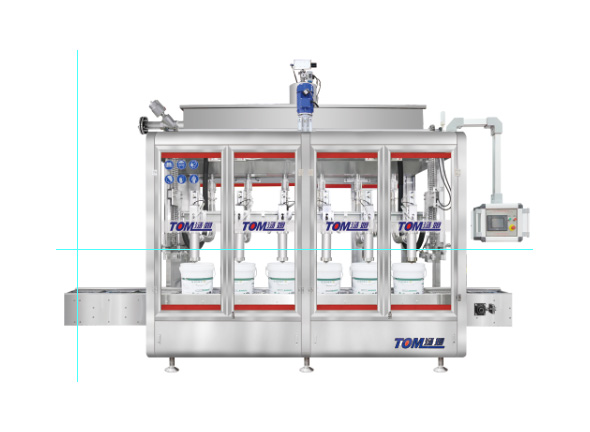

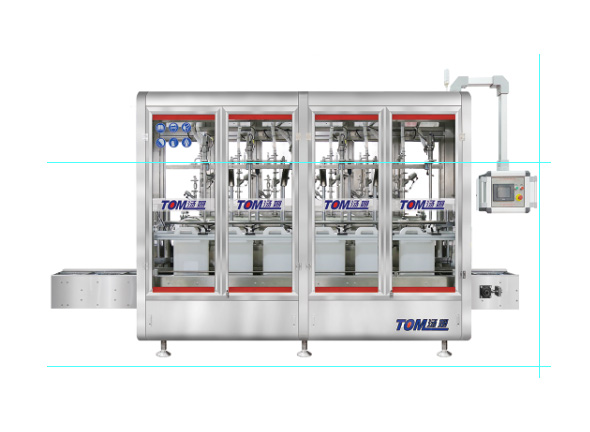

Sauce bottle filling machine is an automated device designed for accurately dispensing various liquid or semi-liquid sauces—from thin condiments like vinegar to thick, chunky products like salsa—into containers. It typically employs mechanisms such as piston, gravity, or pump fillers to ensure high precision (with accuracy often within ±0.5% to ±1%) and efficiency, handling capacities from 1,000 to over 8,000 bottles per hour.
Sauce bottle filling machines are specifically engineered to handle challenging materials. Here are some of their key characteristics:
1. Piston Filling Principle: These sauce bottle filling machines typically use a piston mechanism for measurement and filling, which ensures high precision, with an accuracy that can reach within ±1%. The filling volume and speed are often adjustable.
2. Adaptability to Materials: They are capable of filling high-viscosity, pasty, and even granular substances. Some models come with a stirring device in the hopper to keep the mixture uniform, which is crucial for sauces containing solid particles.
3. Hygienic Design: The sauce bottle filling machinesparts that come into contact with the food are commonly made of food-grade 304 or 316L stainless steel, making them corrosion-resistant and easy to clean, and they comply with hygiene standards. Pneumatic components may use well-known brands to ensure stable performance.
4. Primary Function: Automated filling of sauces, pastes, and viscous liquids (e.g., ketchup, chili sauce, mayonnaise, honey) into bottles.
Food Industry: Salsa, pasta sauce, chili sauce with seeds, chutney, minced ginger/garlic paste, peanut butter, mayonnaise with chunks, premium jams with whole fruits.
Condiment Manufacturing: All types of heterogeneous sauces and pastes.
Cosmetic & Pharmaceutical: Creams, lotions, and ointments containing solid elements.
Main performance parameter:
1.Outline dimension(L*W*H):2500mm*1700mm*2300mm
2.Number of filling head:6
3.Suitable bottle:lengh:160mm-360mm width:140mm-260mm
height:250mm-500mm
4.Diameter of bottle mouth:≥φ40mm
5.Suitable range:10L-50L
6.Production capacity:≤600bottle/hour(test by water)
7.Filling error:≤±0.2%F.S
8.Voltage :220v;50hz
9.Power of host machine:3kw
10.Pneumatic (air-operated)source:0.5Mpa-0.65Mpa
clean and stably compressed air
