Major characteristics

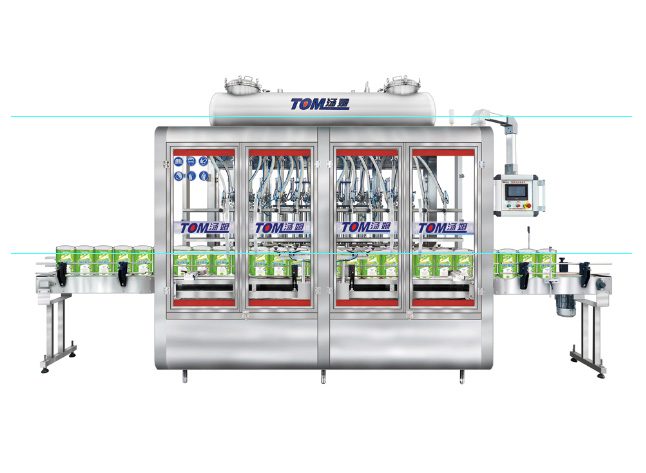

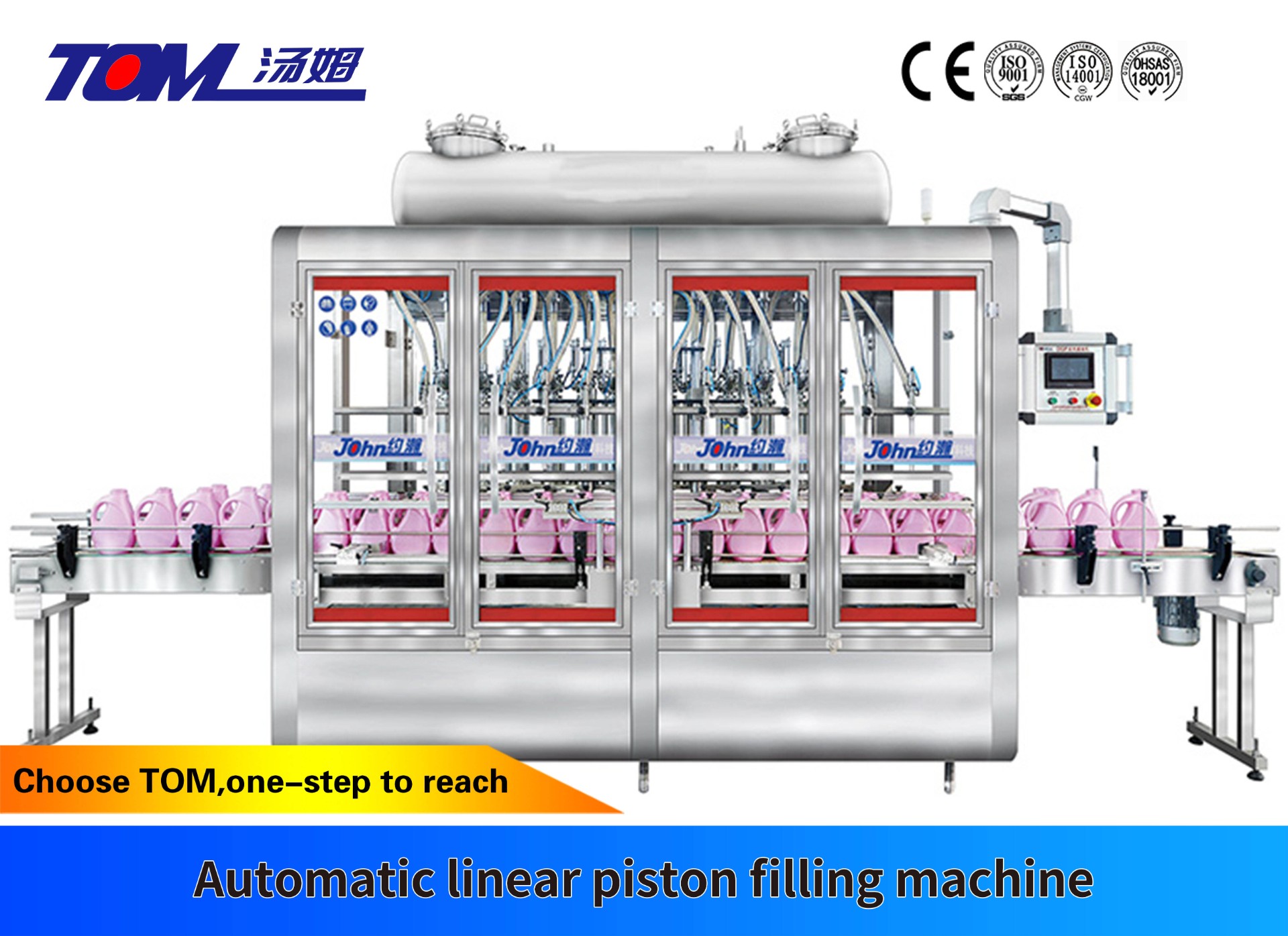

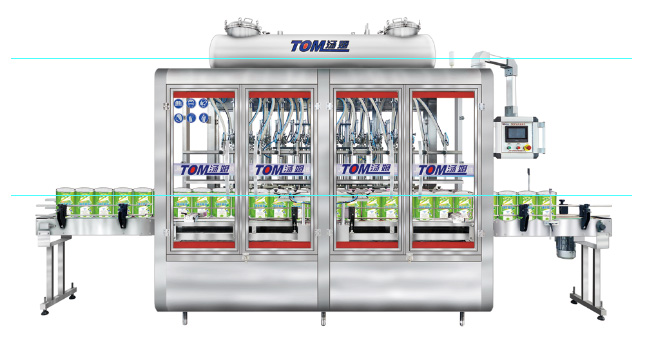

This filling machine is suitable for liquid withou carbonated,semi-fluid quantitative filling. Counting of bottles of bottles inlet quantitative filling,bottles outlet is dont automatically

Especially suitable for SL,EC,SC,edible oil lubrication .It is an ideal unit for foodstuff, medical, cosmetic, fine chemical, pesticide industries.

1. Adopts advanced mechanical and electrical integration technology. Any filling specification can easily be done by changing parameters in touch screen. Not only the filling volume of 12 filling heads can be changed substantially, but also each filling head volume can be changed finely.

2. With touch screen technologies, which make operation of machine steadier, convenient, the human machine interface is more friendly. Photoelectric sensor, approaching switch and other elements are using international famous brand. No bottle no filling, the machine can stop automatically and alarm when bottles get blocked.

3. various sealing rings used can meet different characteristics of products requirements.

4. Designing and production meet GMP. Easily dismantle, clean and maintain. The parts which contact filling products are made of high quality stainless steel. The machine is safe, environmental, sanitary, adapting to various kinds of working places.

Main performance parameter:

1.Machine dimension (L×W×H)：3300mm×1600mm×2200mm

2.No. of filling head ：13

3.Suitable bottle size ：Diameter ：φ40mm~φ100mm Height ：80mm~300mm

4.Diameter of bottle mouth ：≥φ18mm

5.Filling range ：50ml~2000ml

6.Production capacity ：≤5000 bottles/hour (tested by water)

7.Tolerance of filling：1000ml ±2ml

8.Voltage ：220V;50HZ

9.Power ：1.5kw

10.Air consumption :：0.55 - 0.65 Mpa clean and stable compressed air
