Major characteristics

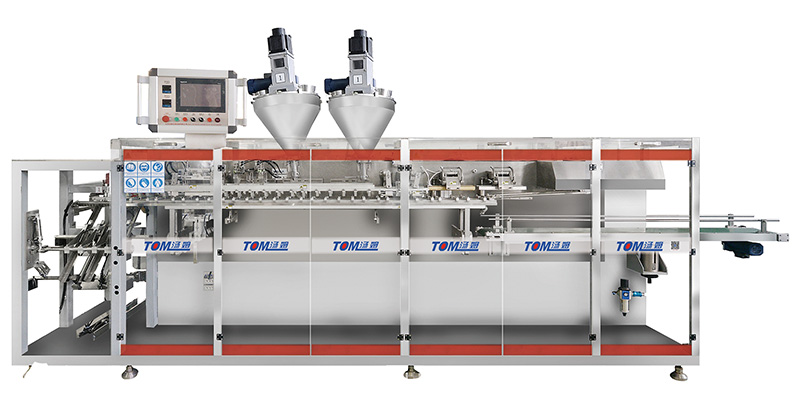

detergent powder packaging machine is suitable for various of small pouch with different shapes. Advanced technology for pouch delivery and pick-up makes high speed. With many patents on this machine , efficiency of productivity is over 98% and material wastage rate is below 1%.

Key Features

• High-Speed Dual-Outlet Operation: Equipped with two independent filling stations, the detergent powder packaging machine achieves speeds of 60–100 pouches per minute, doubling output for large-scale detergent production.

• Precision Auger Filling System: Utilizes servo-driven augers for volumetric dosing, ensuring weight accuracy within ±1–2% deviation and minimizing product waste.

• Smart Control System: Features a PLC (Programmable Logic Controller)and touch-screen HMI for intuitive operation, real-time monitoring, and quick parameter adjustments. Supports recipe storage for fast changeovers.

• Versatile Pouch Compatibility: Handles diverse pouch types, including three-side seal flat pouches, stand-up pouches, and gusseted bags, with adjustable size ranges of 110–270mm (width) and 135–350mm (length).

• Hygienic and Safe Design: All product-contact parts are stainless steel, with integrated safety features like emergency stops, guarding, and dust-proof enclosures to comply with GMP standards.

Main performance parameter:

1、Min . Pouch size ：90mm*100mm

2、Max . Pouch size：135mm*270mm

3、Max .speed ：60-100bags /minute

4、Max . Filling volume ：160ml

5、Filling station ：2

6、Pouch format ：Three edge-sealing flat bags, self-supporting bag

7、Electricity power ：9KW

8、Power requirement ：380V 50HZ

9、Air pressure ： 0.6MPa

10、Air consumption ：500L/min

11、Weight ：2000kg

12、Machine dimension ：4900*1200*2000mm
