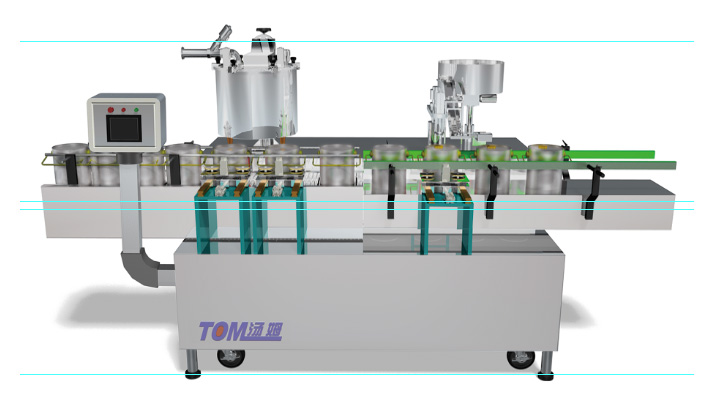

Suitable for 1-10kg Eccentric cylindrical mouth drums double-headed weighing filling, automatic cap feeding, automatic capping.

suitable materials:

painting, paint, ink, adhesive, curing agent, organic solvent, chemical, detergent, pesticide, medicine, lubricating oil, edible oil and so on.

Main function:

PLC control, put drum by manual, double-headed automatic filling, automatic cap feeding, automatic roll-on cap.

10 sets of data can be saved.

Net weight / gross weight two filling methods

Automatic / manual two modes of operation

Fast filling / slow filling two speed control.

Automatic controlled diaphragm pump feed

No barrel no filling protection

Common type / explosion-proof type

The main technical parameters:

1. Dimensions: 2500mm (L)×1700mm (W)×2300mm (H)

2. the number of filling head: 2

3. suitable barrel: φ80mm-350mm Height: 250mm-500mm

4. packing range: 1-25kg

5. production capacity: ≦ 500 barrels / hour (with water as the medium)

6. filling error: ≦ ± 0.1%

7. power supply: 220V; 50Hz

8. the host power: 2KW

9. pneumatic air source: 0.55Mpa-0.65Mpa clean and stable gas source
