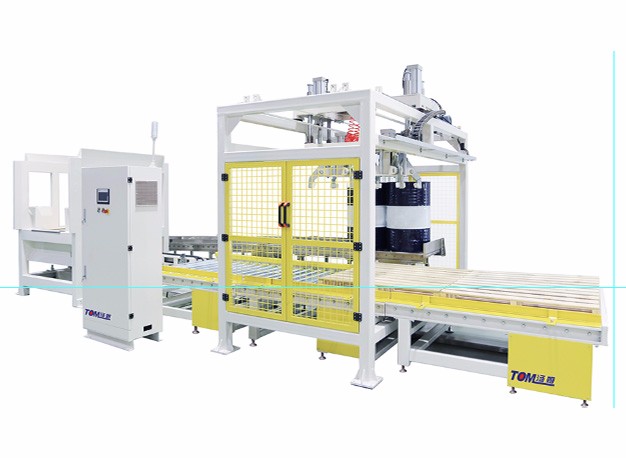

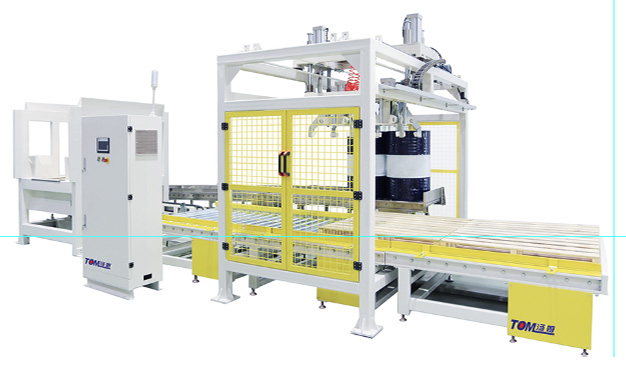

This machine is suitable for palletizing round shape buckets, widely apply to lubricants oil industry.

It has the advantage of high automation, large production capacity, wide range of application and small footprint.

The electric part is controlled by PLC an frequency converter, high integration, strong control ability and working reliable. Adopts touch screen technology, makes the operation more easy an convenient, more friendly man-machine interface. The sensors and pneumatic components are all advcanced and famous brand which integrates perfectly performance of mechanical and electrical.The number of palletized bucket can be adjusted in touch screen.

This machine is designed integrated protection device on the key mechanical transmission part, so it will stop running automatically when come accross any abnormal , and the abnormal part will be showed in touch screen.

Main performance parameter:

1. Machine dimension: 2100mm(L)×2700mm(W)×3200mm(H)

2. Power supply: 380V 50Hz (Reliable grounding)

3. Suitable bucket: round shape

4. Layers of palletizing: 4 layers

5. Packaging specification: 20L

6. Production capacity: ≤720buckets/hour

7. Main power:7kW

8. Air source: 0.6 Mpa clean and stable compressed air
