Major characteristics

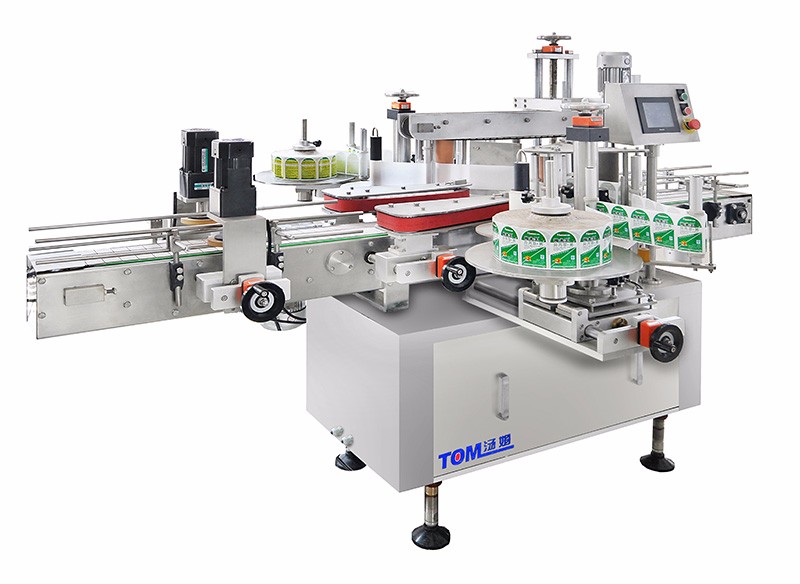

This front and back labeling machine is widely suitable for foodstuff ,cosmetic ,pharmaceutical ,pesticide and other industries. It is single and double side labeling for flat, square and round bottle which volume below 1L. Automatic controlled by computer (PLC) makeseasy operating.No bottle no labeling. It can change specifications easily. Self-adhesive front and back labeling machine is adopted servo motor to achieved closed loop control low malfunction rate with. high efficiency and Fast speed.

Features & Advantages

Dual-Side Labeling in One Pass: Unique configuration applies both front and back labels simultaneously or sequentially within a single operation, maximizing throughput.

Exceptional Precision & Stability: Front and back labeling machine equipped with high-precision stepper/servo motors and advanced guiding mechanisms. Ensures accurate label placement with a repeat accuracy of ±0.5mm.

Broad Compatibility: Handles various label types (paper, transparent, film) and container materials (glass, plastic, metal). Quick-change tooling allows for fast product changeovers.

Intelligent Touchscreen Control: User-friendly PLC-based HMI interface for easy setup, parameter storage, and operation. Real-time monitoring of speed, count, and diagnostics.

Robust Construction: TBJ-920 self-adhesive front and back labeling machine built with high-grade stainless steel and anodized aluminum for durability, hygiene, and longevity in demanding environments.

Advanced Functionality: Includes missing label detection, automatic product sensing, unlabeled container rejection, and optional I/O for seamless PLC integration into smart factory setups.

Main performance parameter

1. Power supply :AC2200v ;50HZ (or according to client voltage requirement )

2. Power :2.5kw

3. Labeling speed :0-26m/minute

4. Inside diameter of the paper roll : Φ75mm

5. Maximum outside diameter of the paper roll :Φ350mm

6. Standard height of the labels :below 130mm

7. Maximum height of the labels :190mm

8. Self-adhesive front and back labeling machine weight :400kg

9. Dimension (L*W*H):3000mm*1200mm*1450mm

Typical Applications

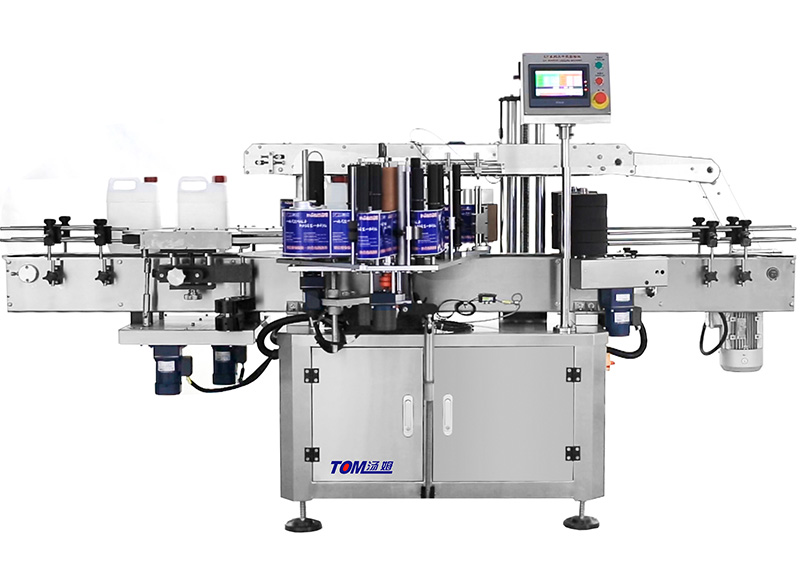

TBJ-920 self-adhesive front and back labeling machine perfect for labeling:

• Bottles: Glass & PET bottles for water, juices, sauces, oils, beers, wines, spirits.

• Containers: Plastic jars, tubs, vials for cosmetics, creams, pharmaceuticals, chemicals.

• Flexible Pouches & Sachets (with customized fixtures).
