Product:

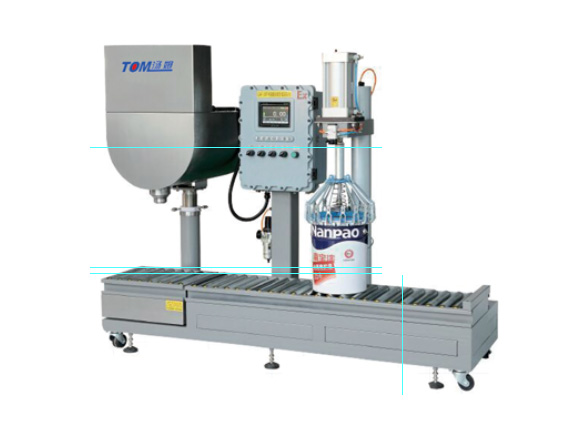

Semi-automatic filling machine with hopper

use:

It is mainly used for quantitative filling and sealing automatic production line of chemical raw materials. It is especially suitable for automatic quantitative filling and sealing of coatings and oil in chemical industry. It is also suitable for automatic quantitative filling of emulsion and foodstuffs in food and pharmacy industry (user supplied material sample and part Characteristic parameter)

Features:

This product is a process control, machine, electricity, gas integration of intelligent products, with the following characteristics: with 50L hopper, weighing error is small, static error ≤ 0.13%, dynamic error ≤ 0.25%. With the central control room computer network (user selection), to achieve modern management. With fault alarm display.

Technical Parameters

Weighing range (kg) 5-30

Filling speed (times / hour) 160-240

Tolerance ± 0.2%

Equipped with power AC220V 60Hz ± 2Hz AC220V

Equipped with air source flow 0.1m3 / min pressure 0.4-0.6MPa

Power W200

Operating temperature 0 ℃ -40 ℃

Dimensions (mm) to provide the outline picture shall prevail

Hopper volume (L) 50l

Weight (kg) 500
