Technical Parameters

Filling range: 10kg-30kg

Division value:20g

Filling accuracy: ≤0.05%F.S.

Filling speed: 120-360 bottles/hour (according to the flow rate of material)

Material: SUS304/SUS316/PTFE

Power supply: AC220 50/60Hz

Power: 0.1KW

Operating Air Source: 0.5-0.7Mpa

Explosive-proof grade:ExdIIBT5 (user selects)

Operating temperature:-10℃-50℃

product Presentation:

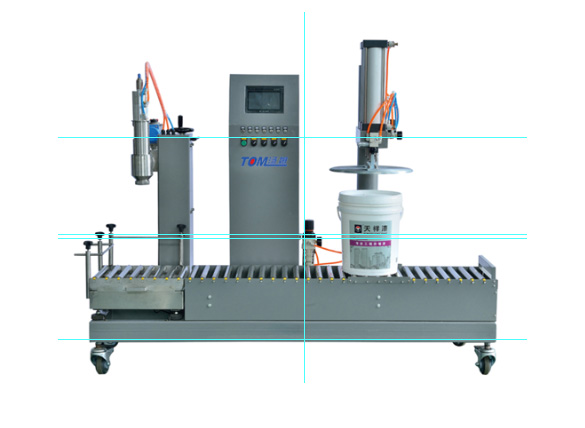

This semi-automatic filling machine mainly used for chemical materials’ quantitative filling and capping production line, especially used for coating and oil painting, also used for foodstuff, medicine and emulsion industry. (users can offer the material sample and some material’s characteristics’ parameter

Major Characteristics

1. This machine is controlled by program, can realize the integration of machinery, electric, and air.

2. Small weighing error, static error≤0.13%, dynamic error≤0.25%。

3. Can networking with Central Control Room Computer (user selects), to realize modernization management.

4. With fault alarm prompt display.

Applied range

Widely used for coating, rinting ink, oil paint, pitch, glue and lubricating oil and some other fine chemical industry.

Application principles

This machine’s working is extracting and squeezing out material by a piston which drived by a cylinder, use a one-way valve control material’s flow, and the cylinder’s stroke is controlled by a magnetic reed switch, the filling volume and filling speed can be adjusted random, the filling accuracy is very high. The filling nozzle is anti-leakage and with lifting function.
