Major characteristics：

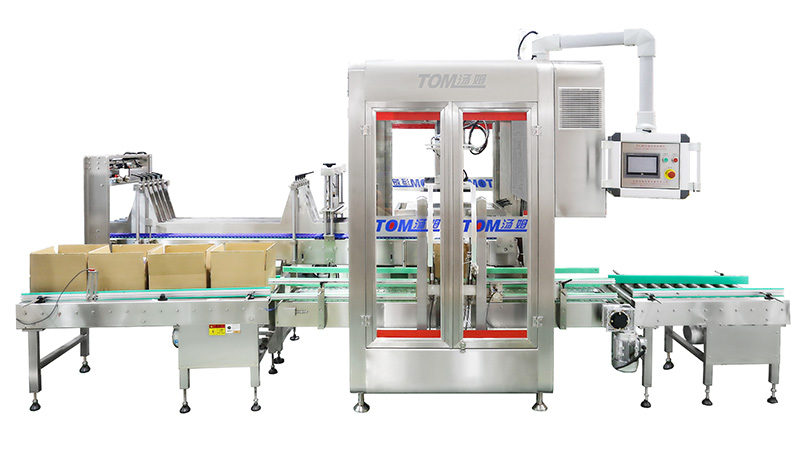

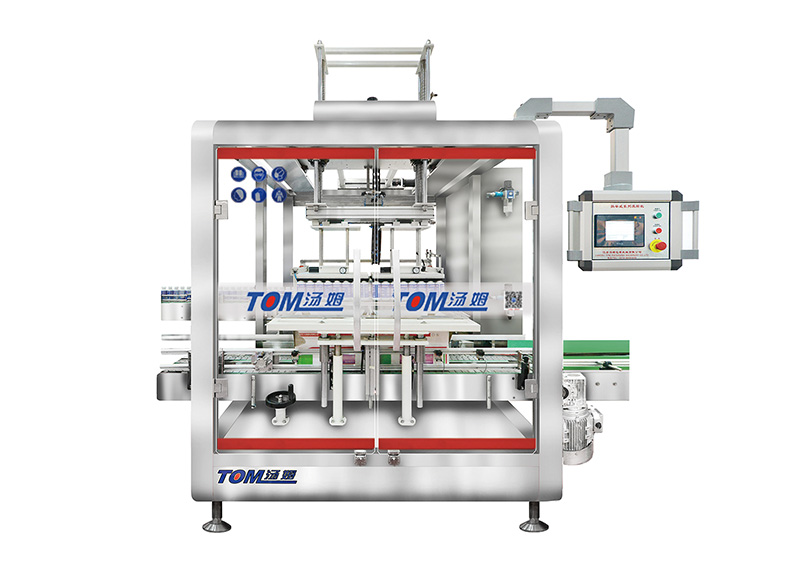

This machine is an intelligent automatic carton packing machine , adopt the high speed orienting device to pack different kind of bottles including oblate , round , irregular plastic bottle and different size of glass bottle , square cans and paper cans etc . Also it is applicable for packing with cardboard sheet .

The bottle gribber (designed according to different bottle )take the bottles to the forme cartons ,then the gribber release . The loaded carton is sent to the carton sealing machine .

This machine adopts PLC touch screen control . With the safety device of alarming and stopping for bottle lacking . Greatly reduce the labour and labour force , is the indispensable machine of automation producing line , according to different packaging requirement , can orient the products automatically .

Wide application ,suitable for many kinds of products

Especially for combination with the packaging line , easy moving .

Bottles , boxes , bags and barrel series .

Main performance parameter :

1. Power supply :220V/380V 50/60HZ 3.5KW

2. Carton size :L200-500*W150-400*H100-450mm

3. Speed :4-16carton /min (according to the carton size )

4. Air source :0.6MPa

5. Dimension :1500*2000*2300mm
