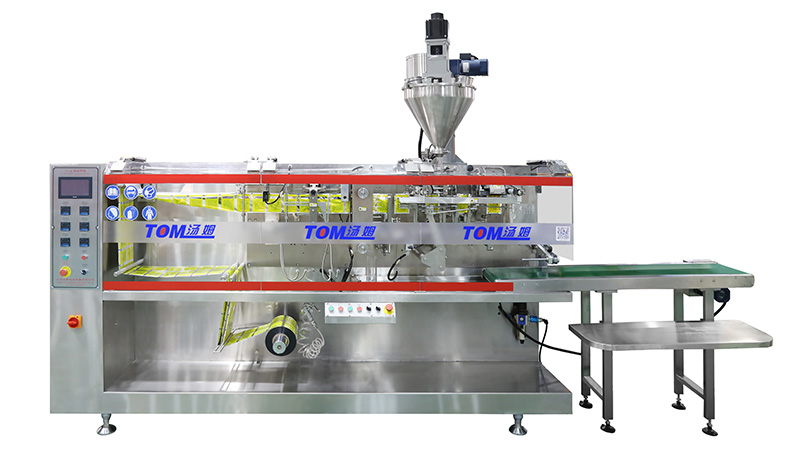

FJ-140 horizontal automatic packaging machine for both liquid and powder (liquid and paste filling equipment )
//www.tompacks.com/uploadfiles/128.1.164.27/webid1348/source/201909/156956499020.jpg
Product Detail

Major characteristics

1. This machine is controlled by PLC and touch screen panel which is easy operated and of high efficient. It is suitable for various products .

2. The control parts of this machine is controlled by the frequency conversion speeder of PLC which has high control ability and high automation. No opening of bags, no filling. Photo-electricity sensor , coder and approximate switch are all from international famous brand .

3. This machine is characterized by its high speed and easy change of the specification of bags. All parts which contact with the filling materials are made of stainless steel.


Main performance parameter:

1.Size of machine (L*W*H): 2850mm*920mm*2200mm powder filling device (different filling device different height )

2.Bag size making : max :140mm(W)*180mm(H) min :60mm(w)*70mm(H)

3.Maximum outside diameter : Φ380mm Inside diameter : Φ70-Φ80mm

4.Power of host machine :3.5KW

5.Power supply :AC 380v

6.Pneumatic (air-operated )source :0.6MPa(clean and stable air source )

7.Speed : 40-80 b/m

8.Weight :1080kg
