Patent No:200920233631.2;200420080672X
Major Characteristics:

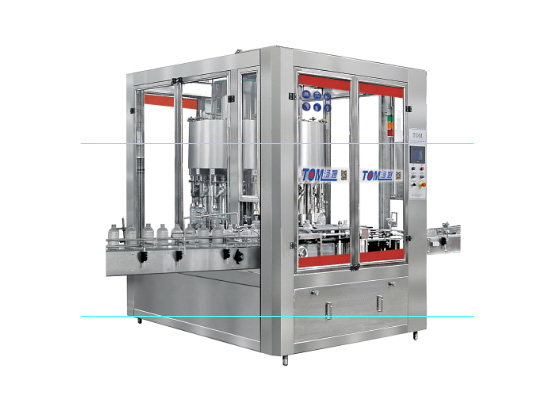

1. With supermatic productivity and high automation, the rotary piston machine is new-generation quantitative fillet The piston cylinder is totally controlled by computer And the whole filling process combines mechanism, electricity, photics and pneumatic together. It also employs internationally advanced technology of the same kind.
2.Thanks to the integration of mechanics and electrics, filling specifications can easily be changed by altering parameter on touch screen control panel. Filling volume of each filling bead can be adjusted respectively. The computer bas function of memorizing the related parameters of each packing specifications, so that it can save time for the second adjustment.
3.During the machine cycle, the key parts are protected by integration of mechanics and electrics if there is anything abnormal, at will automatically stop and alarm ,then the touch screen will hint the abnormal part where it is.
4.Based on design of water-proof and pneumatic protected, so there is no pollution .
Main Performance parameter:
1. Outline Dimension (L x W x H) : 2400mm×2200mm×2200mm
2. Number of filling Head: 20
3.Bottle Application: Diameter: Φ40mm~Φ100mmHeight: 80mm~320mm
4.Packing Volume : 50ml~1000ml
5.Production Capacity: ≦9000 bottles/hour (tested by water)
6.Filling Error: 50ml~200ml≦±1ml、200ml~1000ml≦±2ml
7.Power Supply: 380V
8.Power of host machine : 4.5KW
9 Air consumption: 0.4 Mpa-0.65Mpa clean and stable compressed air
Specifically for the agrochemical enterprises to provide the most provincial, most stable, most advanced packaging smart line, and strive to make Tom's products achieve practical, beautiful, humane, stable, thick and solid, humanization, to make due contributions for China and the world's.
